Original Huawei MA5800-X17 OLT Huge capacity with GPHF GPSF CSHF
The MA5800, the multi-service access device, is a 4K/8K/VR ready OLT for the Gigaband era. It employs distributed architecture and supports PON/10G PON/GE/10GE in one platform. The MA5800 aggregates services transmitted over different media, provides an optimal 4K/8K/VR video experience, implements service-based virtualization, and supports smooth evolution to 50G PON.
The MA5800 frame-shaped series is available in three models: MA5800-X17, MA5800-X7, and MA5800-X2. They are applicable in FTTB, FTTC, FTTD, FTTH, and D-CCAP networks. The 1 U box-shaped OLT MA5801 is applicable to all-optical access coverage in low-density areas.
The MA5800 can meet operator demands for a Gigaband network with wider coverage, faster broadband, and smarter connectivity. For operators, the MA5800 can provide superior 4K/8K/VR video services, support massive physical connections for smart homes and all-optical campuses, and offers a unified way to connect home user, enterprise user, mobile backhaul, and Internet of Things (IoT) services. Unified service bearing can reduce central office (CO) equipment rooms, simplify network architecture, and minimize O&M costs.
![](http://www.hua-network.com/uploads/rz.png)
The MA5800 supports four types of subracks. The only difference between these subracks relies on the service slot quantity (they have the same functions and network positions).
MA5800-X17 (large-capacity, ETSI)

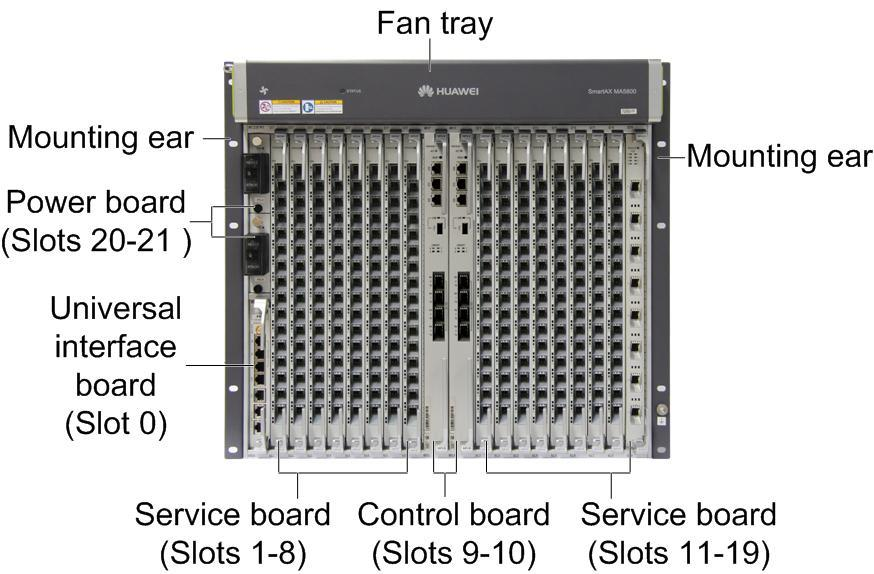

MA5800-X17 supports 17 service slots and backplane H901BPLB.
11 U high and 21 inch wide
Excluding mounting brackets:
493 mm x 287 mm x 486 mm
Including mounting brackets:
535 mm x 287 mm x 486 mm
Feature
Specification
Item
MA5800-X17
MA5800-X15
MA5800-X7
MA5800-X2
Dimensions (W x D x H)
493 mm x 287 mm x 486 mm
442 mm x 287 mm x 486 mm
442 mm x 268.7 mm x 263.9 mm
442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack
Switching Capacity of the System
7 Tbit/s
480 Gbit/s
Maximum Number of MAC Addresses
262,143
Maximum Number of ARP/Routing Entries
64K
Ambient Temperature
-40°C to 65°C**: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range
-38.4V DC to -72V DC
DC power supply:-38.4V to -72VAC power supply:100V to 240V
Layer 2 Features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
