Optical Fiber Fusion Splicer
Signal Fire AI-7C/7V/8C/9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

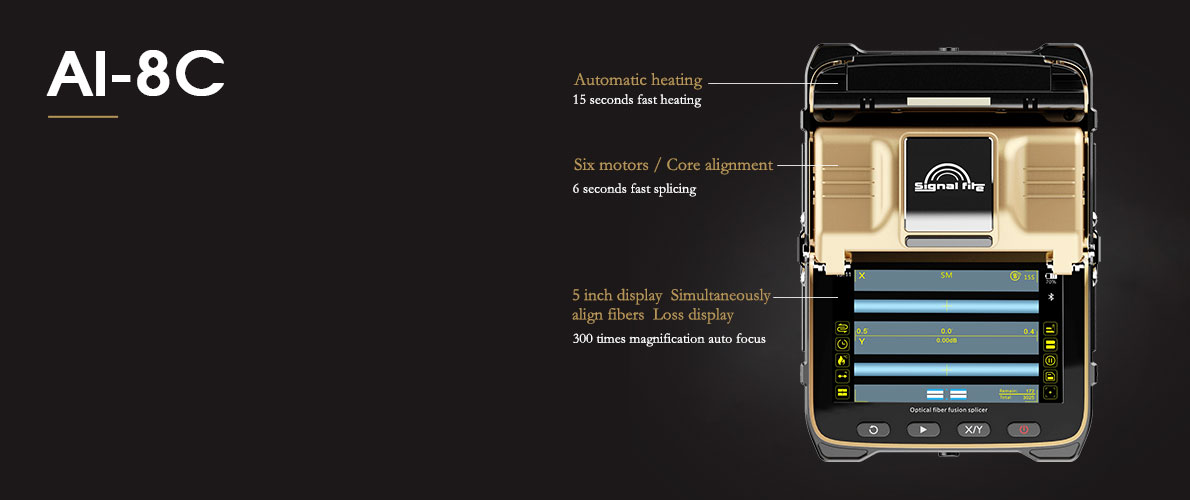

AI-7C Six motors Core alignment AI-8C Six motors Core alignment AI-7V Six motors 、Core alignment AI-9 Six motors Core alignment
8 seconds fast splicing
18seconds fast heating
6 seconds fast splicing
15 seconds fast heating
Anti-theft lockRemote control
6 seconds fast splicing
15 seconds fast heating
Anti-theft lock、Remote control
5 seconds fast splicing
15 seconds fast heating

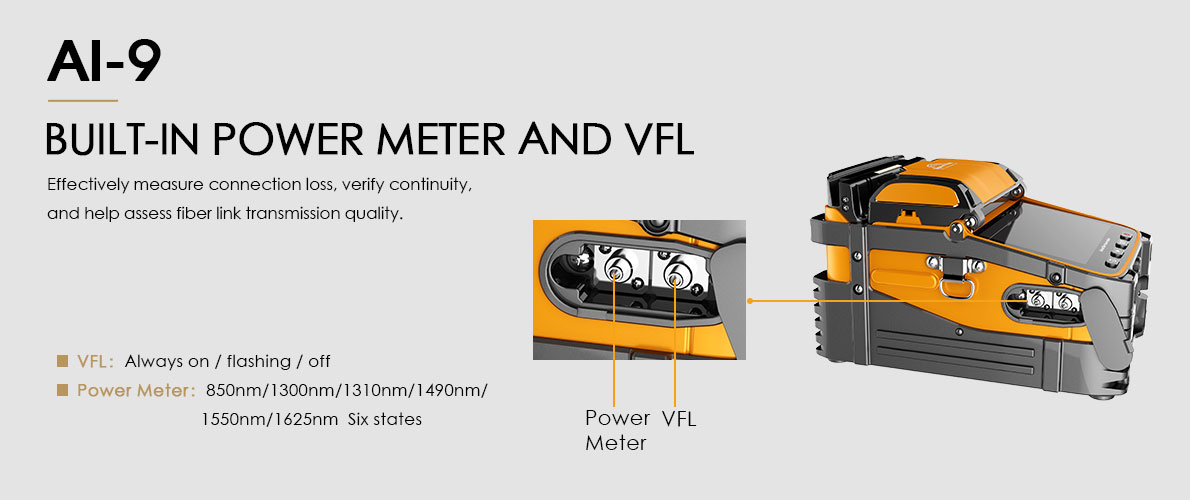

Built-in Power Meter and VFL
Applicable Fibers
SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655）
Splice Loss
0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Focus mode
Auto focus
Fiber alignment
Core/cladding alignment Manual alignment
Typical splicing time
5S（AI-9） ／ 6S（AI-8C） ／6S（AI-7V） ／ 8S（AI-7C）
Typical heating time
15S （AI-9） ／ 15 S （AI-8C） ／15 S （AI-7V） ／ 18 S （AI-7C）
Fast heating function, heating time can be set
Control technology
Real-time control and calibration of fusion ARC
Return loss
Better than 60DB
Fiber diameter
Cladding Diameter 80-150μm，Coating Diameter 100-1000μm
Fiber Cleave Length
Coating less than 250µm：8-16mmCoating less m250-1000μm:16mm
Heat shrinkable tube
60mm、40mm
Visual Fault Locator(AI-9)
Power:15mw,2hzflashing And Constantly Bright Mode
Tension Test
Standard 2N

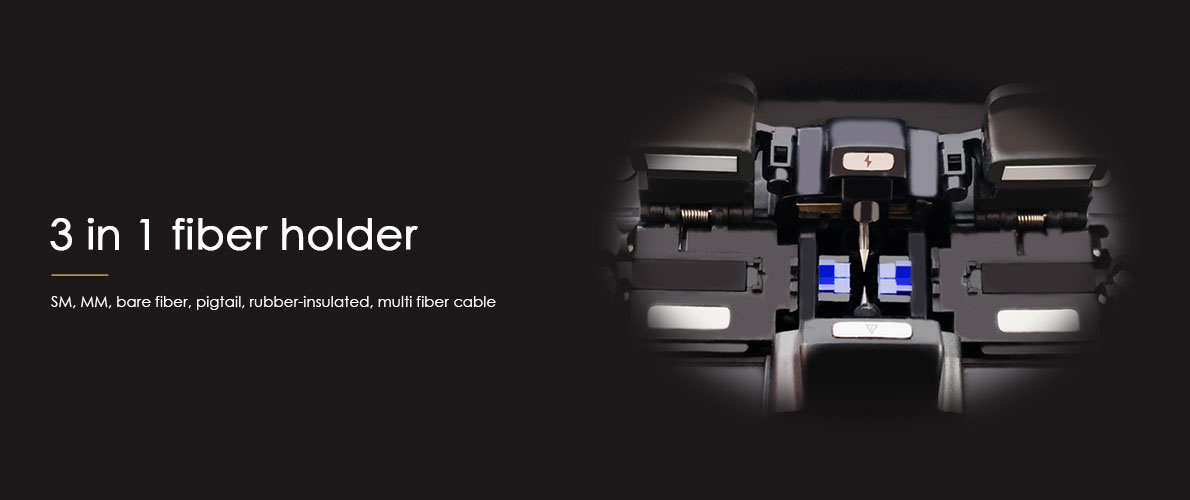

Fiber holders
Multi function holders，Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification
300 for X or Y view, 150 for X or Y view
Screen
5.1 inch TFT color display
Software upgrade
Mobile APP update,Turn on Bluetooth sync to the machine
Splicing Mode
Normal / high precision splicing
Splicing record storage
Synchronize to the phone, the server to cloud storage unlimited
Built-in battery
7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times
Power supply
Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power
Operating Conditions
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s

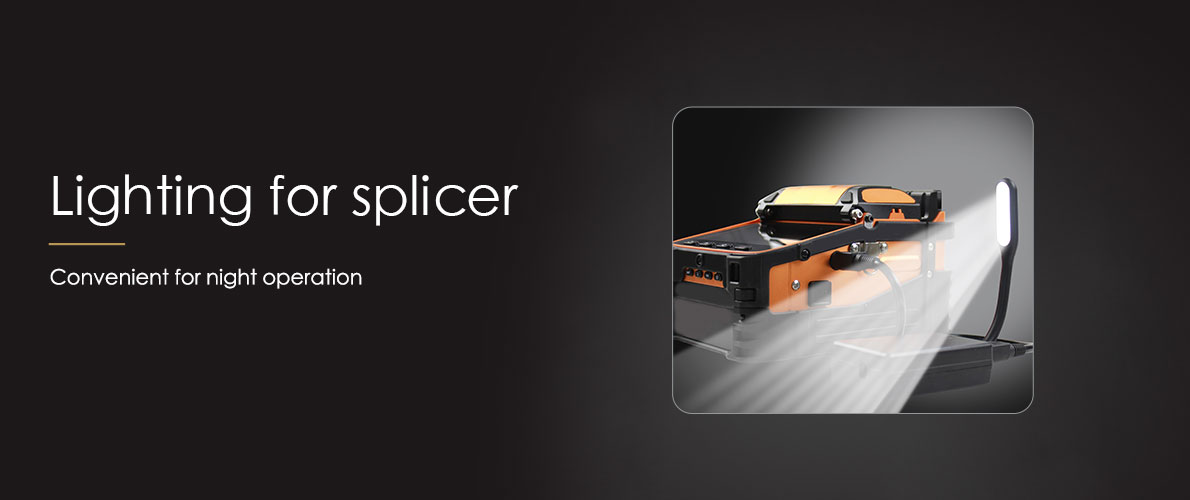

lighting
External
Optical Power Meter(AI-9)
Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm
Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range)
