The optical module is an important device in the optical fiber communication system. Huawei optical modules are produced by Huawei Technologies Co., Ltd., and the place of origin is Shenzhen. Huawei Technologies Co., Ltd. is a provider of telecom network solutions. Huawei’s main business scope is switching, transmission, wireless and data communication telecommunications products, providing network equipment, services and solutions to customers around the world in the telecommunications field.
The following will describe Huawei’s common optical module models.
100G CFP & CFP2 & CXP optical modules
Product number describe
CFP-100G-SR10 Applicable cable and maximum transmission distance:24-strand, type B, female connector
Multimode fiber (OM2) (with diameter of 50 μm): 30 m
Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 150 m
Wavelength: 850nm Connector type: MPO/UPC
CFP-100G-LR4 Applicable cable and maximum transmission distance:
Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Center wavelength (nm):1295, 1300, 1304, 1309 Connector type: LC/UPC
CFP-100G-LR10 Applicable cable and maximum transmission distance
Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Center wavelength (nm):1550 nm band Connector type:LC
CFP-100G-ER4 Applicable cable and maximum transmission distance
Single-mode fiber (G.652) (with diameter of 9 μm): 40 km
Center wavelength (nm):1295, 1300, 1304, 1309 Connector type:LC
CFP-100GE-ZR4 Applicable cable and maximum transmission distance
Single-mode fiber (G.652) (with diameter of 9 μm): 80 km
Center wavelength (nm):1295, 1300, 1304, 1309 Connector type:LC
CFP2-100G-SR10 Applicable cable and maximum transmission distance: 24-strand, type B,
female connector, Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 150 m
Wavelength: 850nm Connector type: MPO/UPC
CFP2-100G-LR4 Applicable cable and maximum transmission distance:
Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Center wavelength (nm):1295, 1300, 1304, 1309 Connector type: LC/UPC

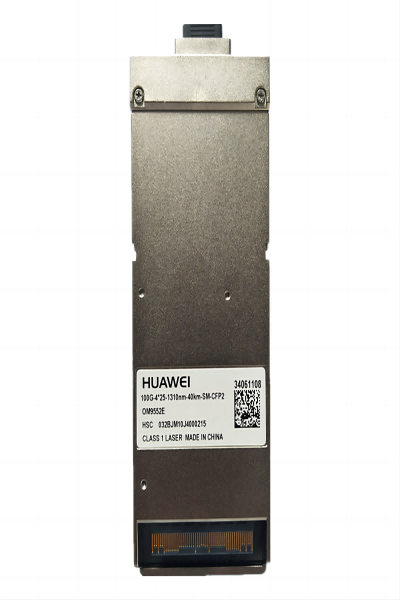

CFP2-100G-ER4 Applicable cable and maximum transmission distance
Single-mode fiber (G.652) (with diameter of 9 μm): 40 km
Center wavelength (nm):1310 nm band Connector type: LC/UPC
CXP-100G-SR10 Applicable cable and maximum transmission distance:24-strand, type B, female connector
Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 150 m
Center wavelength (nm):850 Connector type:MPO
Our company Shenzhen HUANET Technology CO., Ltd. can provide all kinds of Huawei products, include above CFP and CFP2 optical module with very competitive prices, welcome to contact us for prices.
