In recent years, in order to accelerate the development of the integration of the telecommunications network, the radio and television network and the Internet, realize the interconnection and resource sharing of the three networks, and provide users with multiple services such as voice, data, and radio and television. In response to market demand, our company HUANET has a complete set of solutions and a complete product system for FTTx. The system scheme can be optimized according to the actual needs of different projects.
Program overview:
(1) CATV front-end computer room: 1550nm optical transmitter with special technology combined with optical amplifier can effectively increase the output power of the transmitting end and extend the transmission distance;
(2) Sub-front-end computer room: The video multiplexer adopts high-power double-clad erbium-ytterbium co-doped amplification technology, passive PON multiplexing technology, and cooperates with OLT equipment to solve multi-service two-way single-fiber transmission and save fiber resources;
(3) User side: 100M/1000M ONU equipment, supporting multiple services such as the Internet, telephone, and cable television.
Program features:

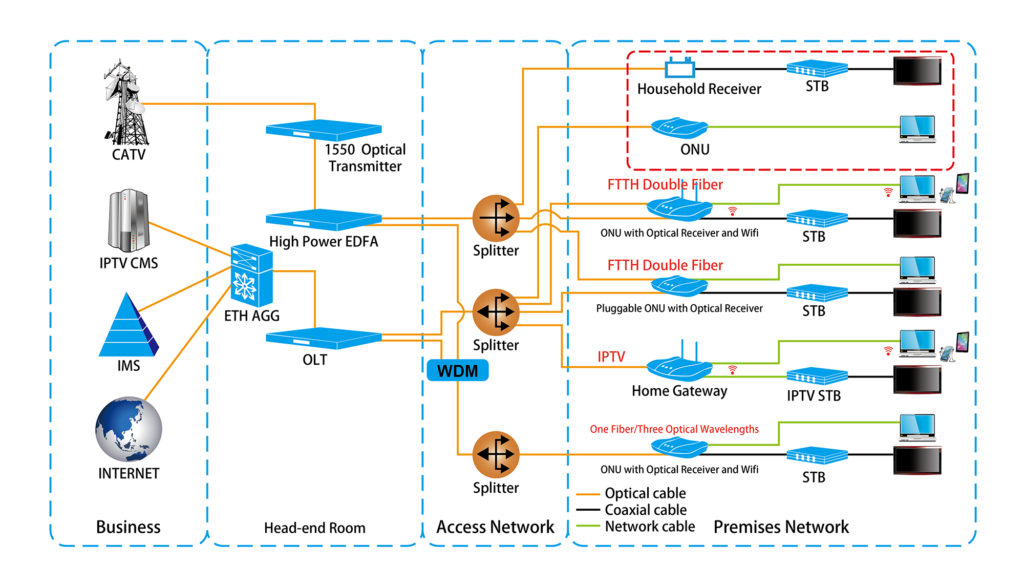

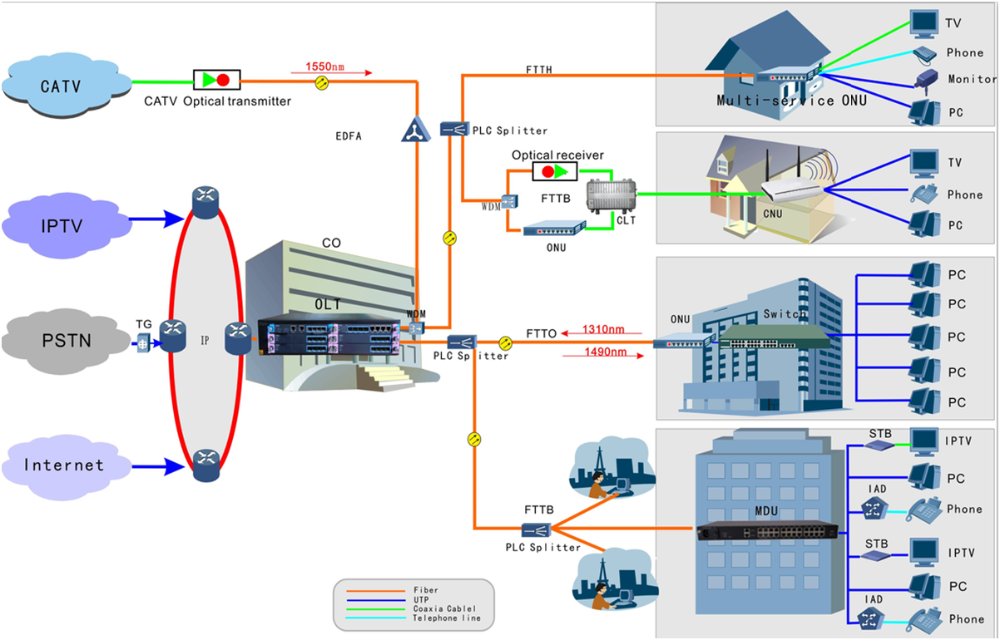

(1) The schematic diagram of this solution is a CATV+PON system, and the overall solution can be flexibly customized according to user needs, including EOC+PON system, WDM-PON system, etc.;
(2) Resolve multi-service two-way single-fiber transmission without additional equipment;
(3) Meet various access requirements such as voice, high-definition IPTV, CATV, and dedicated lines;
(4)Fiber to the home, 1000M to the home can be achieved through EPON/GPON technology.
